Combustion Module Adapter
Designed to securely connect the Rear Ring Main Mount (4131T18) to the Engine Transportation and Maintenance Stand, providing a reliable interface solution for CF34 engine support operations.
Adapter, Main Mount - Combustion Module

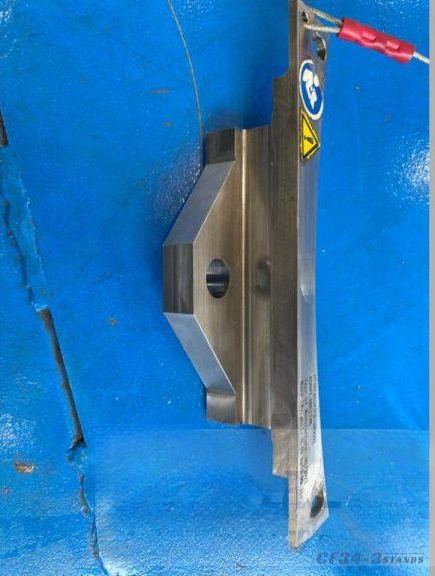

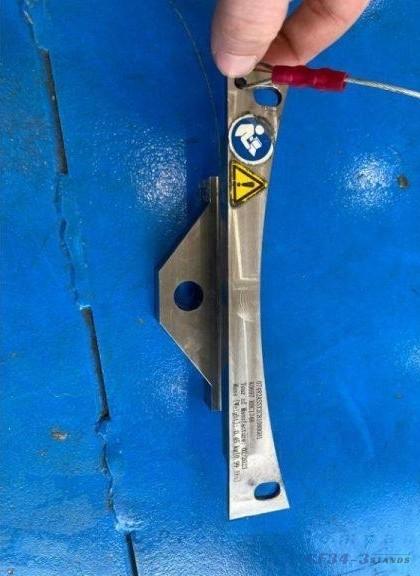

The Combustion Module Main Mount Adapter is a precision-engineered component designed to provide a secure connection between the Rear Ring Main Mount (4131T18) and the Engine Transportation and Maintenance Stand.
Usage & Compatibility
The Combustion Module Main Mount Adapter is designed to securely interface the Rear Ring Main Mount (4131T18) with the Engine Transportation and Maintenance Stand, ensuring proper alignment and reliable engine support during maintenance operations.
DESCRIPTION

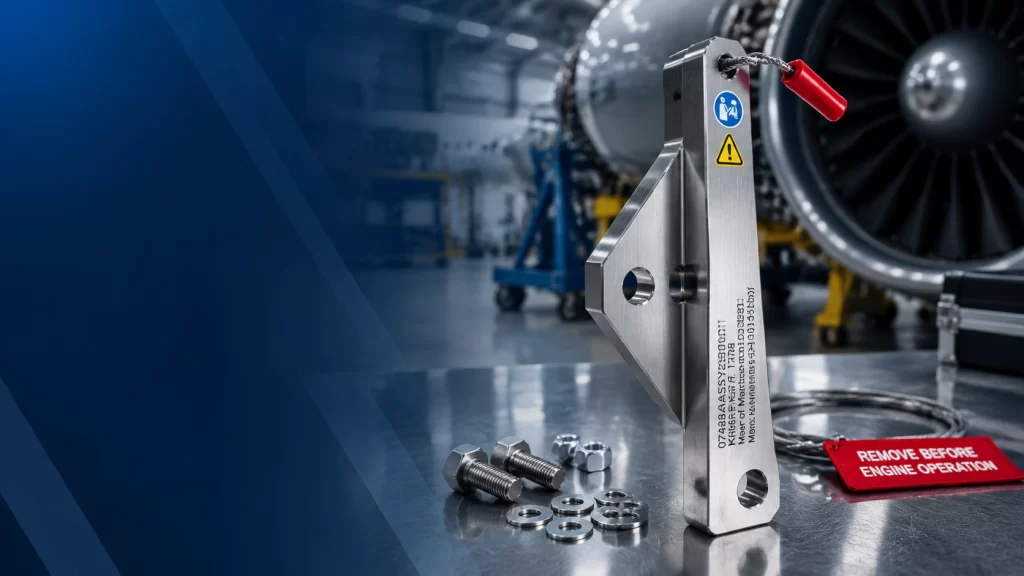

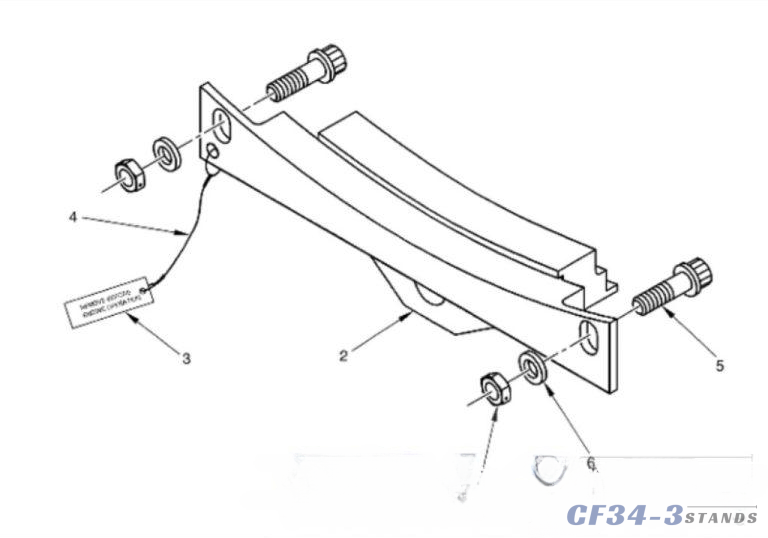

The Combustion Module Main Mount Adapter assembly includes one adapter, one cable assembly, two bolts, four flat washers, and two nuts. The adapter features precision-machined slots for secure attachment to the Rear Ring Mount (4131T18), along with a through-hole interface designed for proper integration with the Engine Transportation and Maintenance Stand. Manufactured from durable 17-4PH stainless steel, the adapter provides reliable strength and long-term performance. The assembly also includes a “Remove Before Engine Operation” safety streamer for proper operational identification.
DIMENSIONS
7.0 × 2.0 × 3.0 inches (177.8 × 50.8 × 76.2 mm)
WEIGHT
10 lbs (4.5 kg)
SUPPORTING TOOLS
Engine Transportation and Maintenance Stand
